Applications:

                                   ■ Aquaculture and aquarium

                                   ■ Water disinfection

                                   ■ Air disinfection

                                   ■ Food processing

                                   ■ Waste water treatment

Features:

■ Wall-mounted design

■ High efficiency and stable ozone production

■ Double quartz generation tubes

■ SUS case

■ Low maintenance

■ Ozone output adjustable

■ Remote control capability

■ Error indicator

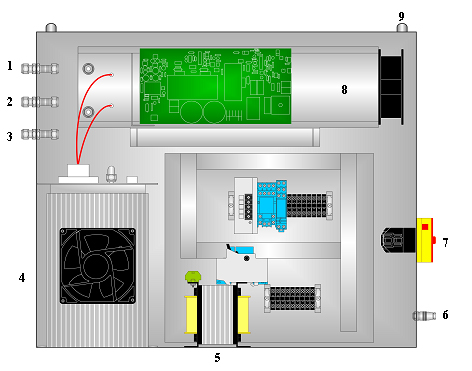

  1. Gas In

  2. Ozone Out

  3. TF

  4. HV Transformer

  5. Transformer

  6. Signal I/O

  7. On/Off switch (EMS switch)

  8. Ozone generation tube

 What is W-5 ozone generator?

W-5 is an air-cooled, air fed / oxygen fed ozone generator. It is designed for wall mounting. Ozone is generated between the surfaces of quartz tubes so that no metallic oxidization contamination can occur.

The ozone output of W-5 ozone generator is from 5 to 40 g/h depending on the feed gas. The sources of feed gas are (1) ambient air which is sucked in by negative pressure, (2) dry air (dew point -60℃) which is provided on-site supplied or supplied by AirTree AM-20 Air Dryer, (3) oxygen which is provided on-site or supplied by AirTree MX-6 or MX-12 Oxygen Concentrator.
