Model

W-5 ozone generator

        Dimensions

W600 × L250 × H530 (mm)

        Weight

47 kg

        Feed Gas

Air

        Gas flow

20 l/min (0.7 bar-gauge at outlet)

        Operation pressure

1.0 bar-gauge (at inlet)

0.7 bar-gauge (at outlet)

        Ozone Production

5 to 40 g/h

        Cooling method

Air-cooled

        Ozone outlet

6 mm Swagelok

        Power supply

AC 220-240 V, 50/60 Hz, single phase

        Power consumption

450 W (on-duty)

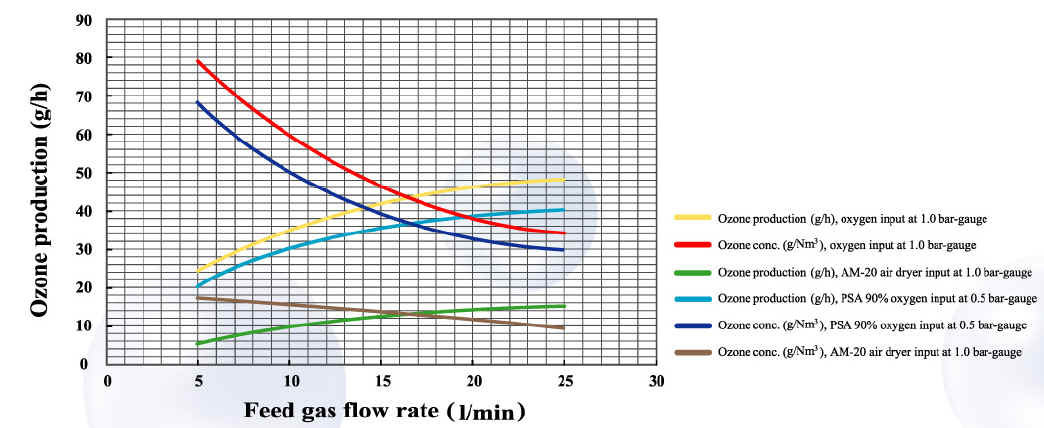

■ The performance of W-5 ozone generator (25℃)　

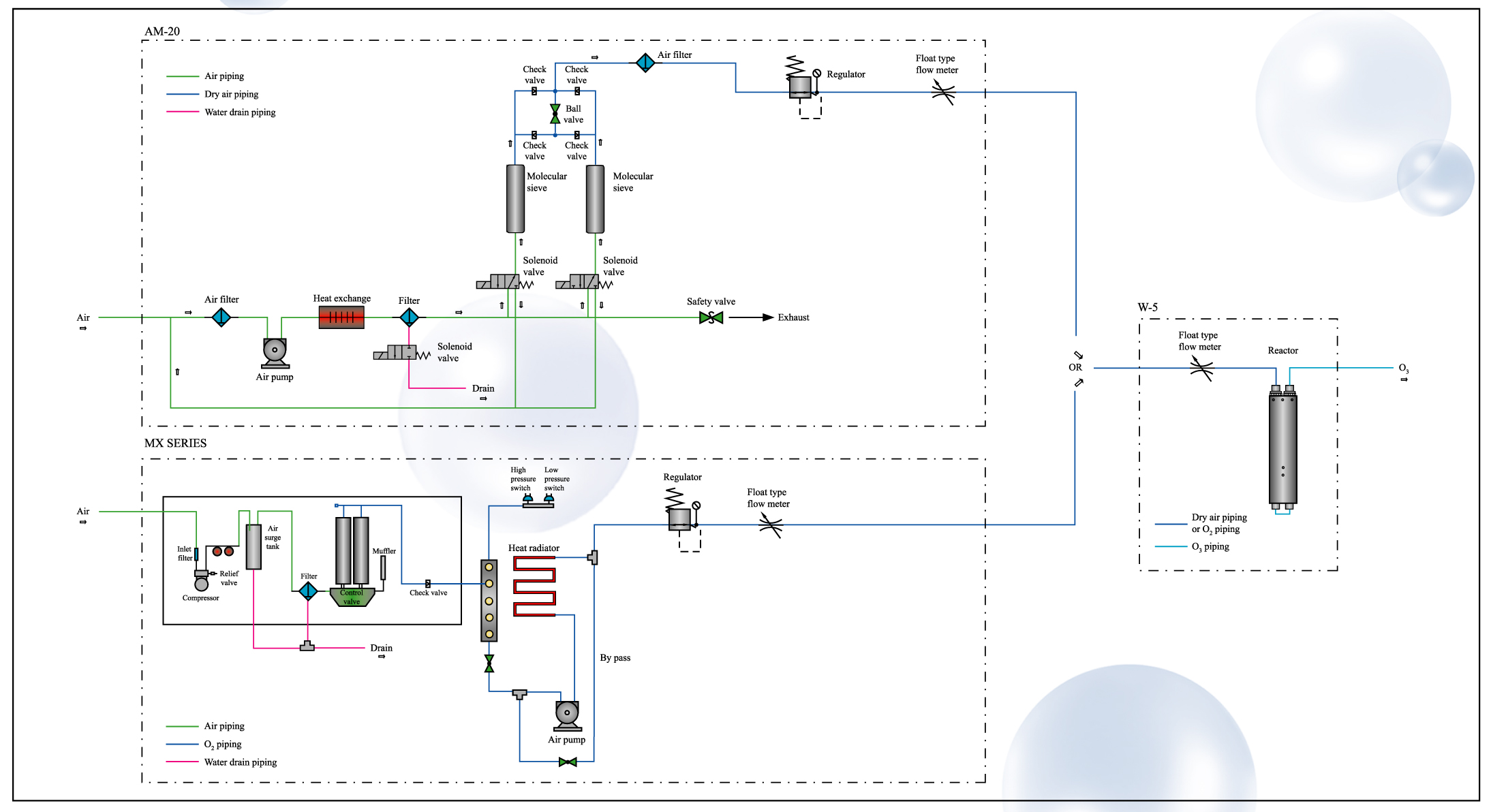

  ■ The piping diagram
