Specification of BOB-7
|
Ozone Production |
0.9 g/h dissolved into water |
|
Dimensions (cm) |
20 x 20 x 39 |
|
Weight |
12 kg |
|
Feed Gas |
Internal air supply (Max. 8 l/min) |
|
Controls |
Duty period and duty cycle can be determined by jumpers configuration |
|
Indicators |
LED signals for power on/off and ozone generation |
|
Power supply |
AC 230 V, 50/60 Hz, single phase |
|
Power Consumption |
90 W (on-duty) |
State at 20℃ and 1 atm.
Installation with cooling tower of capacity < 50 RT
Specification of S-5
|
Ozone Production |
|
|
Dimensions (mm) |
W400 × L250 × H600 |
|
Weight |
38 kg |
|
Feed Gas |
Air / under negative pressure suction |
|
Gas input pressure |
1.0 kg/cm2 |
|
Cooling method |
Internal air cooled |
|
Power supply |
AC 230 V, 50/60 Hz, single phase |
|
Power Consumption |
230 W |

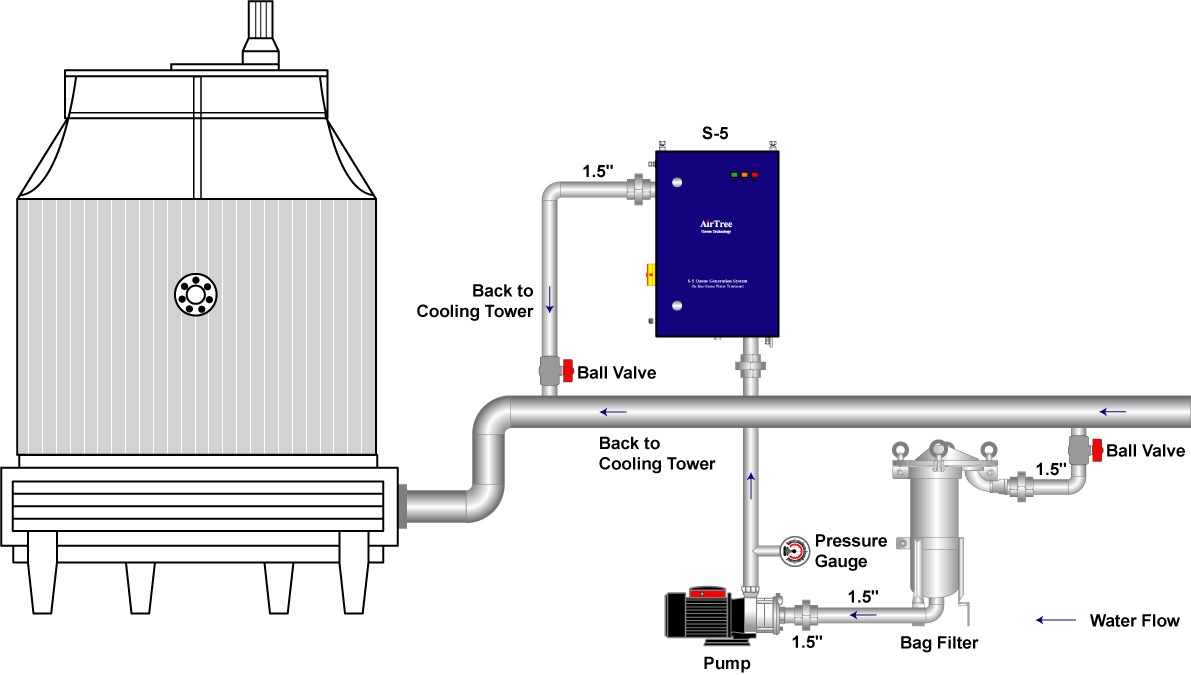

Installation with cooling tower of capacity in 50-200 RT
Specification of A series
|
|
A series |
|
|
A-20 |
A-40 |
|
|
Dimensions (mm) |
W500 x L600 x 1200 |
W500 x L600 x 1200 |
|
Weight (kg) |
125 |
130 |
|
Consumption (W) |
800 |
1500 |
| Operation pressure | 1.5 bar-gauge | 1.0 bar-gauge |
|
Ozone production (25℃) |
20 g/h @ 24 l/min |
40 g/h @ 48 l/min |
|
Structure |
Corona discharge between the surface of two quartz tubes |
|
|
Feed gas |
External air supply system |
|
|
Cooling method |
Air-cooled |
|
|
Ozone outlet fitting |
10 mm Swagelok |
|
|
Power supply |
AC 220-240 V, 50/60 Hz, single phase |
|

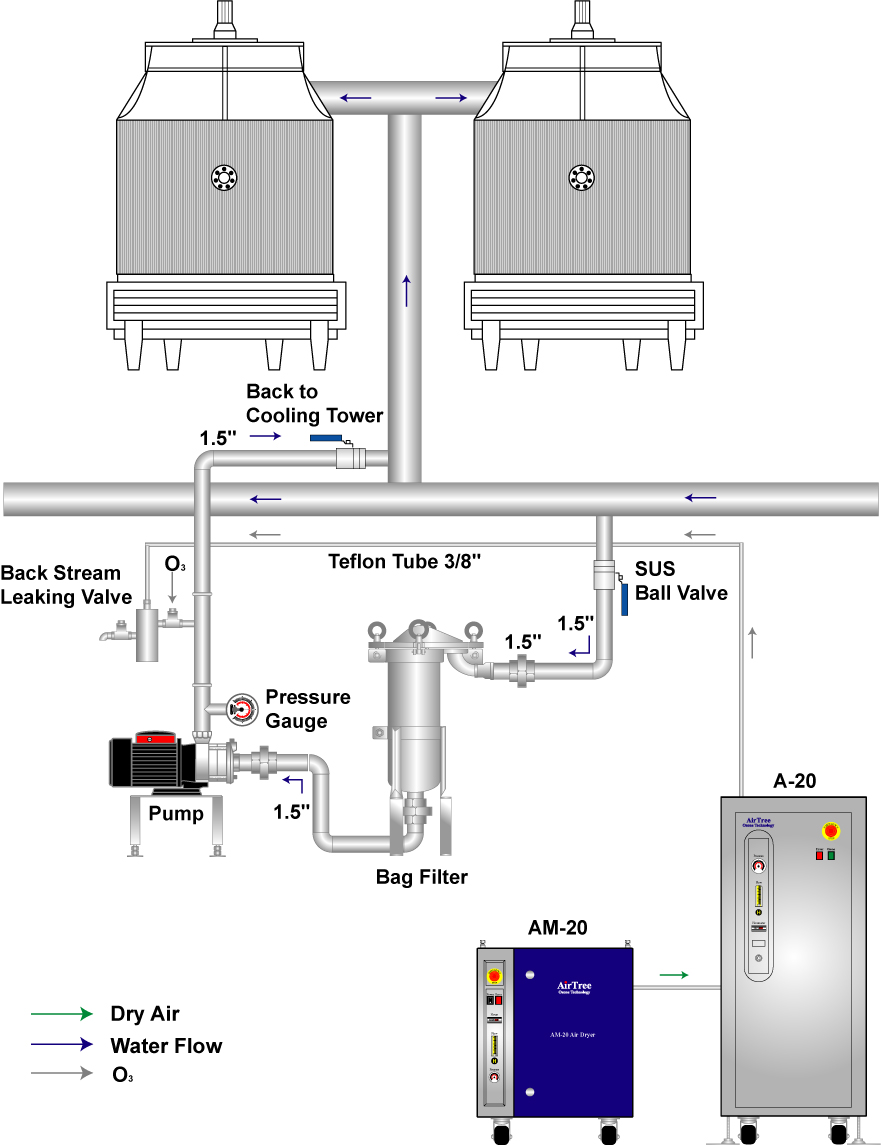

Installation with cooling tower in multi-cell
configuration of capacity 200-500 RT

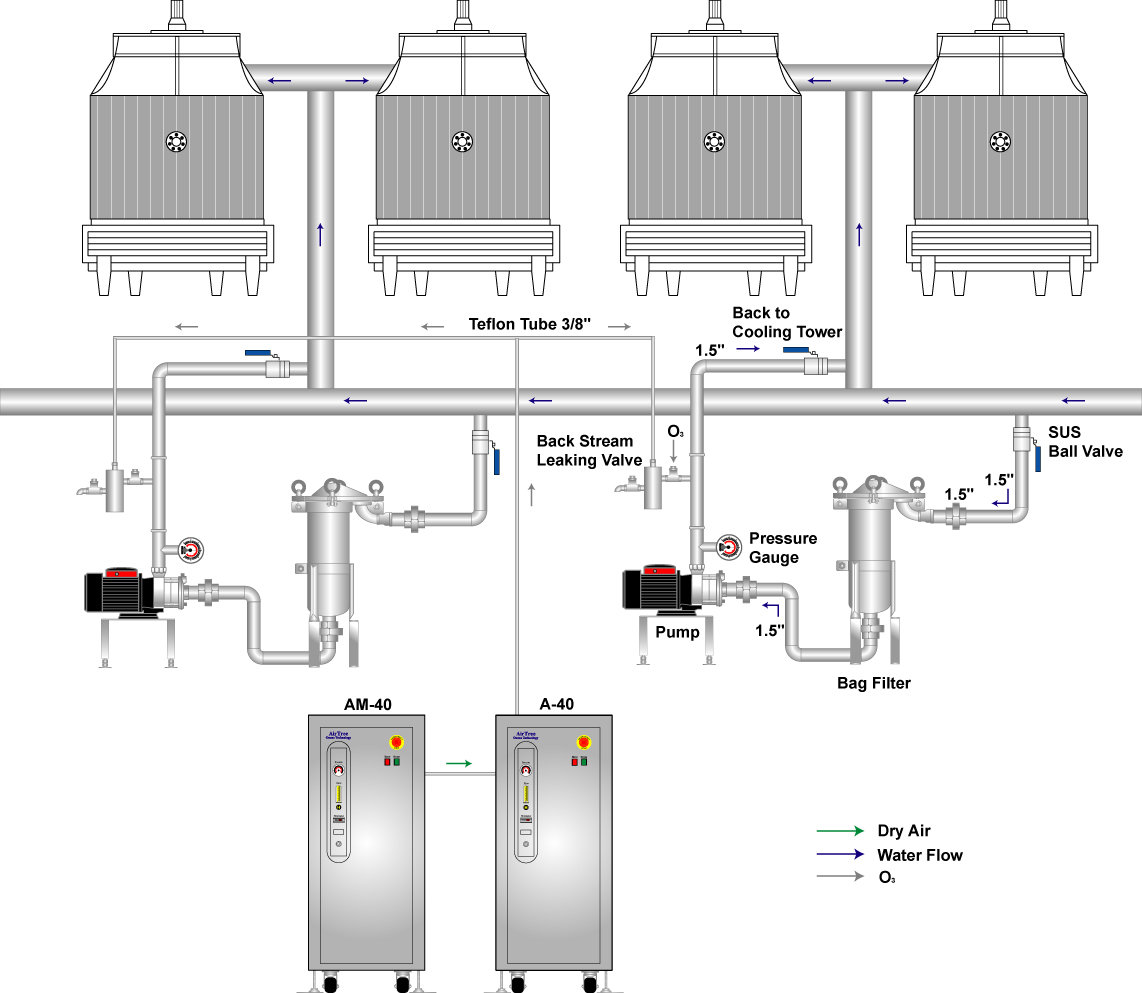

Installation with cooling tower in multi-cell
configuration of capacity 500-1,000 RT

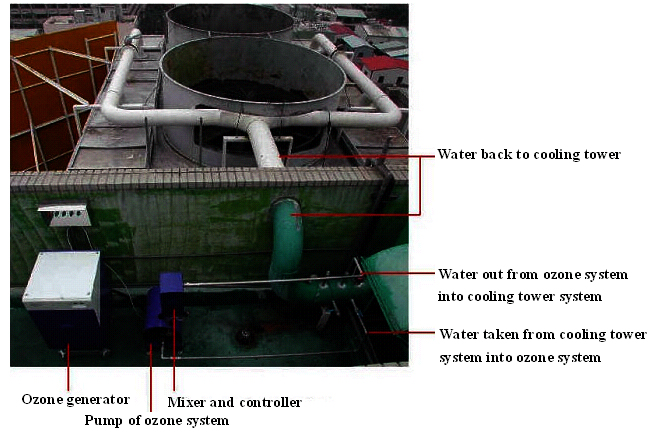

Installation to a medium size cooling tower
