Specification:

　
　


A series

A-20

A-40

Dimensions (mm)

W500 x L600 x 1200

W500 x L600 x 1200

Weight (kg)

125

130

Consumption (W)

800

1500

Operation pressure 1.5 bar-gauge 1.0 bar-gauge

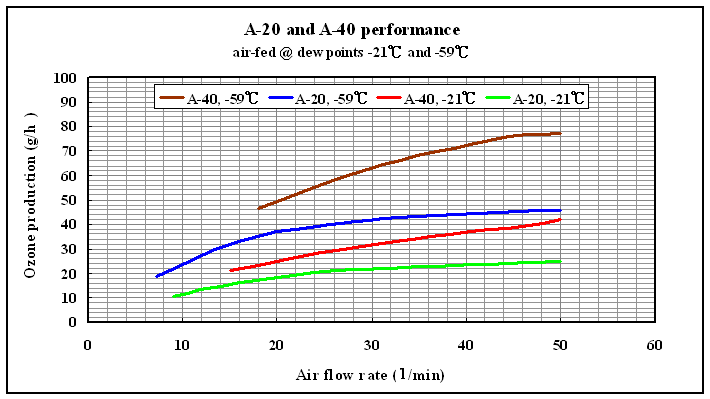

Ozone production (25℃) 20 g/h @ 24 l/min 40 g/h @ 48 l/min
Structure Corona discharge between the surface of two quartz tubes

Feed gas

External air supply system

Cooling method

Air-cooled
Ozone outlet  10 mm Swagelok

Power supply

AC 220-240 V, 50/60 Hz, single phase





　

　

　
